SKU:53844113

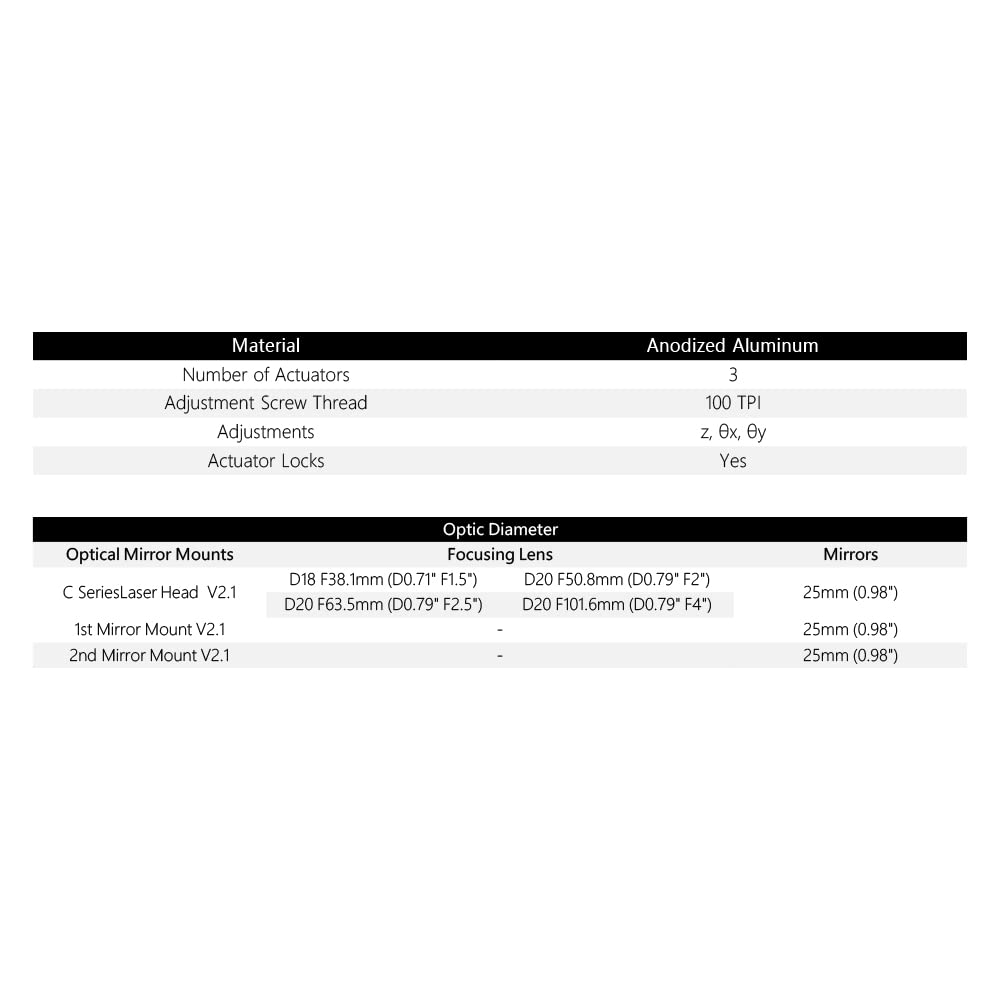

Parameter Number of actuators: 3 Adjustment screw thread: 100 TPI Adjustments : z, θx, θy Actuator Locks : Yes Mirror Diameter：25mm LensUsed for Lens : Diameter18mm (Nozzle) FL 38.1(Nozzle)Used for Lens : Diameter20mm FL 50.8/63.5/101.6mm Features Set A Aluminum Material With Black Oxide CoatingAdjustable lnstallation Hole Of Mirror MountsIntegrative Fixture Laser Head With Air Assist Nozzle Package List 1 pcs C Series Head1 pcs 1st Mirror Mount1 pcs 2nd Mirror Mount1 pcs USA CVD ZnSe Focus Lens(D20 FL50.8)3 pcs Si Mirror(D25) Various Focal Length Adaptation 1.5-inch lens Optional lens for high resolution engraving.Recommended for raster engraving above 600 DPI resolutions.Recommended for small font or fine detail engraving.Produces spot size of 0.003 to 0.0065 inches in diameter.Good cutting lens for thin (less than 1/16 inch) material. 2-inch/2.5-inch lens Standard lens on most laser systems.Multipurpose for both engraving and cutting applications.Recommended for raster engraving from 300 DPI to 600 DPI resolutions.Produces spot size of 0.004 to 0.007 inches in diameter. 4-inch lens Produces focused beam over longer vertical distanceSpecialty lens typically used for engraving within recessed area (bowl or plate).Used for cutting thick materials. Superior Adjustability CO2 Laser Head 1st Mirror Mount 2nd Mirror Mount

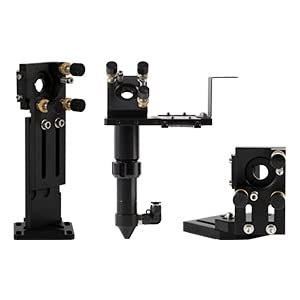

7 PCS in 1 Set complete parts for co2 cutter head installation and DIY.
Application replacement parts for co2 engraving and cutting machine.
C Series head and 2 kinds of mirror mounts are made of aluminium material with black oxide coating

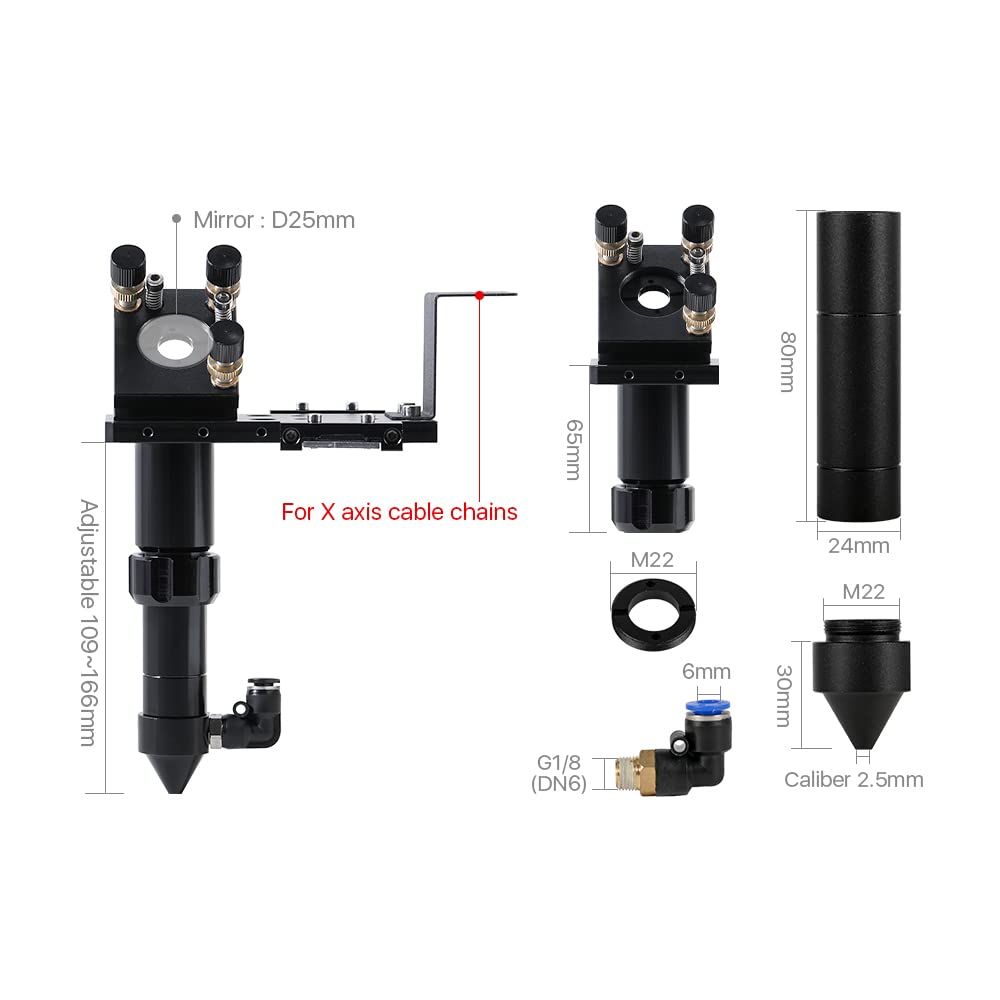

Integrative Fixture C Series Head With Air Assist Nozzle, Concentric Ring Locking Lens Tube Precise Optical Path

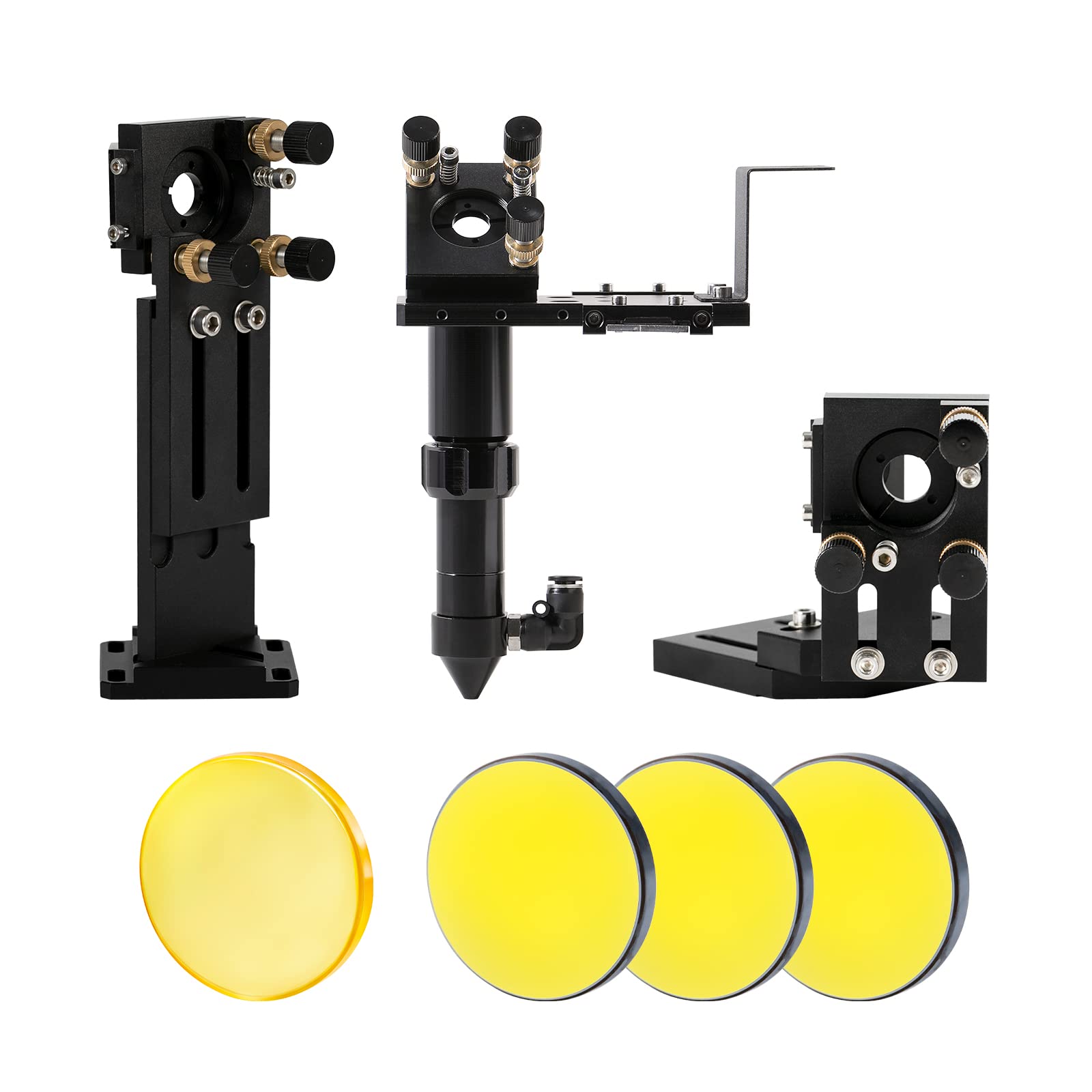

Package 1set C Series Head Set & 1pcs USA ZnSe FocusingLens(D20mm FL50.8)& 3pcs Si Mirrors (D25mm)
I have an older Fabool 40w CO2 laser that I have been in the process of upgrading to a 100w laser. As par of the upgrade, I decided to replace all mirror mounts and the laser head. While the Fabool provided equipment was adequate, the mountings and only being able to alien the mirrors with 2 screws was not really working for me.Although I had to make some modifications to this Cloudray set (the mounting of the laser head), I am very pleased with the quality of this product and I would recommend it to anyone looking to do an upgrade.
